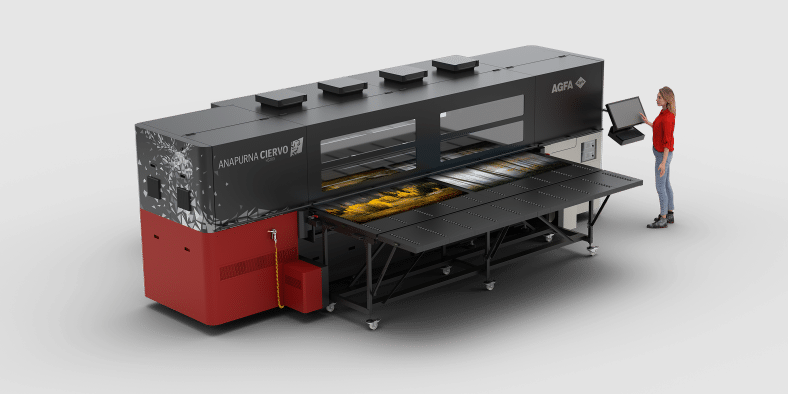

Anapurna Ciervo Family

Versatile hybrid wide-format inkjet printer

Just like slender deer move nimbly through the woods, the Anapurna Ciervo printers approach any printing job with great agility – ready for whatever crosses their paths. If you are looking for versatility to tackle a wide range of print jobs, the Ciervo family will prove a perfect fit for your sign & display printing business.

H2050	H2500	H3200
Hybrid	Hybrid	Hybrid
Up to 133 m²/h – 1,432 ft²/h	Up to 169 m²h – 1,819 ft²/h	Up to 192 m²/h – 2,067 ft²/h
Up to 205 cm – 80 in	Up to 250 cm – 98 in	Up to 320 cm – 126 in
CMYKcm + white	CMYKcm + white	CMYKcm + white

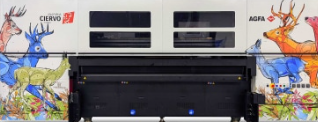

How to get a limited-edition Ciervo
Agfa is giving away 10 exclusive Ciervo printers to print service providers worldwide. Want to be among the lucky winners? Get your limited-edition Ciervo!

Don’t miss out!
This is your chance to own a one-of-a-kind printer with a one-of-a-kind artistic design.

Why the Ciervo is the right beast for you

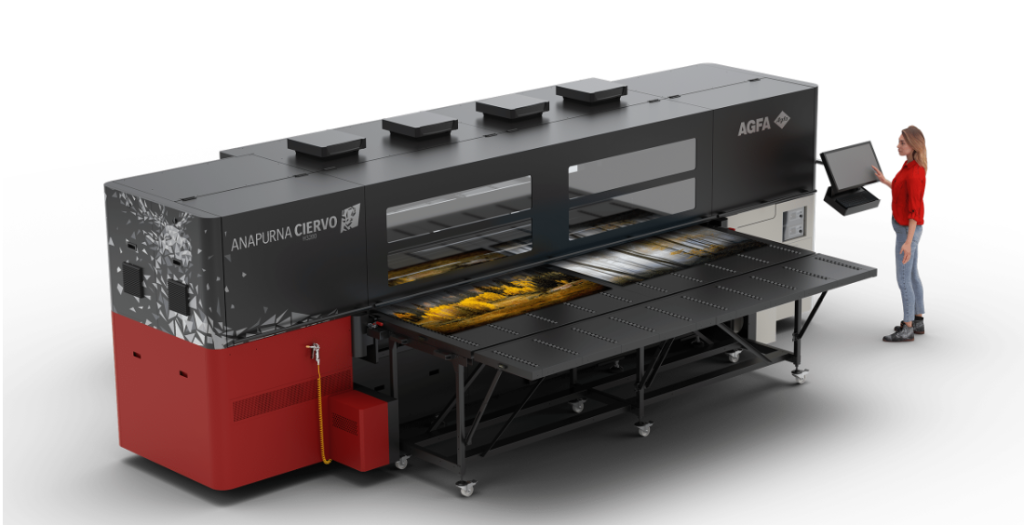

The Anapurna Ciervo wide-format hybrid printers are designed for sign shops and digital printers looking for a combination of versatility, productivity, and excellent print quality. With a print width up to 3.2 meter, UV LED curing, and a six-color plus white ink set, these print engines are a perfect fit for a wide range of indoor and outdoor print applications.

• Versatile printers that tackle a wide range of rigid and roll media for indoor and outdoor applications
• Productivity enhanced through efficient continuous board feeding & multiple board printing (up to 4 simultaneously)
• Borderless printing limits post-finishing requirements
• GREENGUARD Gold-certified inks with wide color gamut and exceptional rendering of dark solid tones
• Pre-white, sandwich white and post-white in one run
• Optional media feed guides enlarges the application scope to corrugated board printing
• Proven technology, based on 20 years of expertise
• Built on an industrial framework tailored for enduring steady workloads
• UV LED technology brings economic and ecological benefits
• Thin Ink Layer technology for lowest ink consumption
• Powered by smart Asanti workflow software

Navigate with agility. Excel in every setting. Anticipate any challenge.

A wide range of applications

The Anapurna Ciervo range revolutionizes your business with unparalleled versatility across a spectrum of applications:

• High-quality prints on uncoated rigid media such as exhibition panels, stage graphics and advertising boards, as well as on roll media like film, vinyl, banners, canvas, and coated textiles
• UV LED lamps broaden the range of printable media to e.g. thin, heat-sensitive foils, as well as PET or microflute.
• Niche products and applications in architectural and interior decoration
• The white ink function lets you print on transparent materials for backlit applications, or use white as a spot color.

Printer models

Standout features

Multiple board and borderless printing
The continuous board feeding capacity significantly enhances your productivity. This automated process is ideal for volume printing of boards, enabling the simultaneous printing of up to four boards. With the added advantage of borderless printing, post-finishing becomes unnecessary

Small and large media tables
The Anapurna Ciervo printers come standard with a small set of media tables. As an option, an additional set of large media tables can be acquired. This set can be coupled to the default smaller tables and makes it possible to print on rigid materials up to a length of 3.2 m

Roll to roll printing
When it comes to roll-to-roll printing, both the Ciervo H3200 and Ciervo H2500 offer cutting-edge solutions, but their features cater to different needs. The Ciervo H3200 is designed for seamless roll media transport, featuring an automatic media tension control system that adjusts speed and torque for optimal performance. Its motor-driven unwinder and rewinder system compensates for width and diameter variations during printing, ensuring consistent results. With support for 3″ media cores and a conveyor belt transport system, the H3200 is ideal for high-precision, roll-to-roll applications. On top, single rolls can be up to 3.2 m wide, while in dual printing mode, rolls can be up to 1.52 m wide. Changing from single- to dual-roll printing and vice versa is easy. On the other hand, the Ciervo H2500 improves its media transport for flexible substrates sensitive to web swing.

Flawless media handling
The printer guarantees smooth and precise media loading with automated functionalities embedded in the GUI, such as the media registration bar and head height adjustment. A vacuum system intelligently controlled across four zones maintains consistent vacuum levels throughout the printing process, whether printing on flexible or rigid materials. This ensures flawless media transport, consistently delivering precise print results.

LED lamps
Powerful air-cooled UV LED lights offer substantial energy savings and are well-suited for thermally sensitive materials, thanks to their low energy output. This makes them ideal for printing thin slides, self-adhesive sheets, or stretched PVC materials.

Ionization bars
Ionization bars mounted on the carriage remove electrostatic charges on the substrate, ensuring optimum ink droplet placement

Shuttle safety sensors
A set of shuttle safety sensors prevents print heads from touching the substrate and getting damaged.

Corrugated media guides
The optional corrugated media guides ensure precision and reliability when printing on corrugated cardboard, enabling printers to confidently tackle packaging and point-of-sale applications. These optional guides – which can also be retrofitted on Ciervo printers already in use – allow the printers to operate seamlessly across a broader range of media types, in addition to maximizing their uptime.

User-friendly control panel
All printer settings are intuitively organized in a user-friendly graphic interface, accessible via a swivel-arm-mounted touch screen. The printer efficiently handles printed files through an internal bitmap server with a 1 TB hard drive dedicated to ripped images, ensuring rapid spooling and secure transfer of substantial data volumes.

Ink management system
Throughout production, the automatic ink refill system diligently monitors ink levels. The ink (re)filling system is easily accessible, ensuring a clean refill of ink containers. A fully separate system manages the white ink, overseeing circulation, under-pressure regulation, and cleaning. The white ink tank is equipped with a stirring mechanism, ensuring continuous mixing to maintain optimal ink consistency.

Strengthened beam
A reinforced beam ensures seamless movement of the print shuttle, guaranteeing accurate dot placement.

Inflatable airshafts
The printer is equipped with inflatable airshafts for unwinding and rewinding, complemented by a rewinding tension roller, ensuring flawless material tension and wrinkle-free prints. The carbon-made rear shaft is both lightweight for operator comfort and robust for consistent and efficient performance.

Protective closure
The safety hood covers the print belt and shutter, eliminating any potential risks of harm to operators.

Agfa-made inks: the perfect match

Powered by Asanti workflow software

The Anapurna hybrid printers are driven by Agfa’s Asanti wide-format workflow software, which controls the entire printing process from prepress to production and finishing. As such, it simplifies, optimizes and automates as many steps as possible, offering you a high-performance solution for increased productivity.

Simplify & automate

Including the latest Adobe PDF Print Engine, Asanti takes care of preflighting and job conversion to guarantee smooth, error-free job handling and consistent print quality. In addition, the software streamlines your print operations through automatic job layout and positioning. It also gathers all artwork for a specific press and specific media, and optimally nests it on the print sheet or roll, taking copy count and bleed into account.

Asanti guarantees consistent color reproduction through the creation and use of color profiles. Its patented Calibrated Print Mode (CPM) feature uses easy-to-set-up production templates that contain all parameters for a particular substrate and enable automatic job creation. It will only take you 15 minutes to calibrate and profile media, before you can enjoy hassle-free printing with optimal and consistent quality!

World-class training and support, anywhere you need it

If you purchase an Agfa solution, your operators will get trained directly by Agfa’s global support team. Have a question or did you run into an issue? Our experienced service technicians and application experts throughout the globe are available when you need them.

Technical data

• Anapurna Ciervo Series

MODELS	ANAPURNA CIERVO H3200	ANAPURNA CIERVO H2500	ANAPURNA CIERVO H2050
PRODUCTIVITY
Draft Mode Express Mode Production Mode Standard Mode High Quality Mode	Up to 192 m²/h (2,067 ft²/h) Up to 130 m²/h (1,399 ft²/h) Up to 66 m²/h (710 ft²/h) Up to 35 m²/h (377 ft²/h) Up to 18 m²/h (194 ft²/h)	Up to 169 m2/h (1,819ft²/h) Up to 115 m²/h (1,238 ft²/h) Up to 59 m²/h (635 ft²/h) Up to 31 m²/h (334 ft²/h) Up to 18 m²/h (194 ft²/h)	Up to 133 m2/h (1,432ft²/h) Up to 95 m²/h (1,022 ft²/h) Up to 48 m²/h (516 ft²/h) Up to 26 m²/h (280 ft²/h) Up to 15 m²/h (161 ft²/h)
MEDIA & PRINTING SPECIFICATIONS
Rigid media
Maximum width	320 cm (126”)  316 cm (124”) with borderless printing	250 cm (98.5”) 247 cm (97.2”) with borderless printing	205 cm (80.7”) 202 cm (79.5”) with borderless printing
Maximum length	Supported by 1 rigid roller table: 140 cm (55”) Supported by 1 rigid roller table + media extension table (default): 320 cm (126”)
Minimum size	A2 landscape (60 x 42 cm – 23.6 x 16.5”)
Thickness	Minimum thickness: 1 mm (0.04”) Maximum thickness: 45 mm (1.77”)
Maximum weight	10 kg/m² on printing table (22 lb)
Flexible media
Maximum width	320 cm (126”) 316 cm (124”) with borderless printing	250 cm (98.5”) 247 cm (97.2”) with borderless printing	205 cm (80.7”) 202 cm (79.5”) with borderless printing
Maximum length	n/a – restricted by weight and diameter
Thickness	Min. 0.2 mm (0.08”)
Maximum weight	0.31 kg (0.682 lb) per cm (0.4” in roll width, meaning 100 kg (220 lb) evenly distributed over the full 3.2 m (126”) width	50 kg (110 lb)
Maximum roll outside diameter	Support for 3” core-media rolls – maximum media roll diameter 30 cm (11.8”) (larger diameter up to 50 cm (19.7”) can be allowed within the distributed weight limitation, in case only print side OUT is used – both unwinder and winder)	Support for 3” core-media rolls with maximum outside diameter 36 cm (14.17”)
PRINT HEADS & INKS
Print heads	Konica-Minolta heads
Inks	CMYKcm + white
IMAGE & TEXT QUALITY
High-quality prints	Up to 720 x 1,400 dpi
Text quality	Positive: 4 point / Negative: 6 point
ENGINE DIMENSIONS & HEIGHT
Printer dimensions (H x W x L)	199 x 581* x 208 cm (78 x 228 x 82”)	199 x 510* x 193 cm (78 x 201* x 76″) * without swivel arm	199 x 455* x 169 cm (78 x 179* x 66″) * without swivel arm
Weight	3,800 kg (8,378 lb)	3,150 kg (6,944 lb)	2,650 kg (5,842 lb)
ELECTRICITY & COMPRESSED AIR
Electricity	380 V 3-phase star connection with Neutral wire (3 x 32 A) 50/60Hz230V 3-phase delta connection without Neutral wire (3 x 32 A) 50/60 Hz
Compressed air	Oil free (class 1 according to ISO 8573-1 2010), 160 l/min compressor with 50 l barrel @6bar
SYSTEM INTEGRATION RIP / WORKFLOW SOFTWARE
Integrated production solution with Asanti workflow software.
